Replacing or installing a fuel tank in a fiberglass boat is a major project that requires precision and the right materials. If the foundation is weak or the tank is poorly prepared, you risk structural failure, water intrusion, and severe corrosion. Proper fuel tank preparation is critical for the safety and longevity of your vessel.

By building a sturdy fuel tank coffin and applying the correct sequence of resins and fiberglass, you can create a secure housing that accommodates natural hull movement. This guide breaks down steps to build the foundation, lay the fiberglass, and prepare the tank itself for a flawless installation.

How do you build the fuel tank coffin and foundation pads?

The fuel tank coffin is the structural cavity that holds the tank in place. Because boats experience constant impact and vibration, the tank needs a solid base but also enough room to flex.

Start by creating a template for the sides of the fuel tank area. You can use styrofoam or thin template wood to mock up the exact dimensions. Make sure to leave adequate space around the perimeter so the fuel tank has room to expand and shift slightly without grinding against hard fiberglass walls.

Once the template fits perfectly, transfer the design to a high-quality core material. Choose Coosa board or marine plywood to build the sides and the foundation pads. Mark clear layout lines on the hull area so you know exactly where the side pieces and foundation pads will sit. Fit the Coosa or marine plywood into place to verify the alignment.

What is the best way to apply vinyl ester putty and fiberglass?

With the structural pieces cut and dry-fitted, you must permanently bond them to the hull. Choose vinyl ester resin and vinyl ester structural putty over standard polyester products. Vinyl ester bonds much more aggressively to old fiberglass surfaces and offers superior flexibility, which helps prevent cracking under stress.

Mixing and applying the structural putty

Mix your vinyl ester structural putty with MEKP (Methyl Ethyl Ketone Peroxide) catalyst. When mixing, roll the putty, flip it, and cut it repeatedly to ensure an even catalyst distribution.

Apply the mixed putty to fill the gaps between the hull and your Coosa or plywood pieces. You want to "butter the seam" by pushing the putty deeply into the joints. Clean up any excess resin putty immediately. Next, add extra putty along the inside corners to create a smooth radius (or fillet). A good radius prevents air bubbles when you lay the fiberglass cloth over the corners.

Laying the fiberglass reinforcements

Apply vinyl ester resin over the area, then lay down pre-cut 1708 knit fiberglass. The 1708 fiberglass provides immense structural strength. When navigating tight corners, notch or pleat the fiberglass so it wraps smoothly without lifting.

Use a finned roller to press out trapped air bubbles and distribute the resin evenly. In tight corners or complex crannies, use a brush to stipple (or dab) the resin directly into the glass. For a smooth cosmetic finish, apply a layer of chopped strand mat as the top layer. Always feather the edges of the mat by ripping it by hand rather than cutting it with scissors. Ripped edges blend seamlessly into the surrounding surface.

How should you prepare the fuel tank for installation?

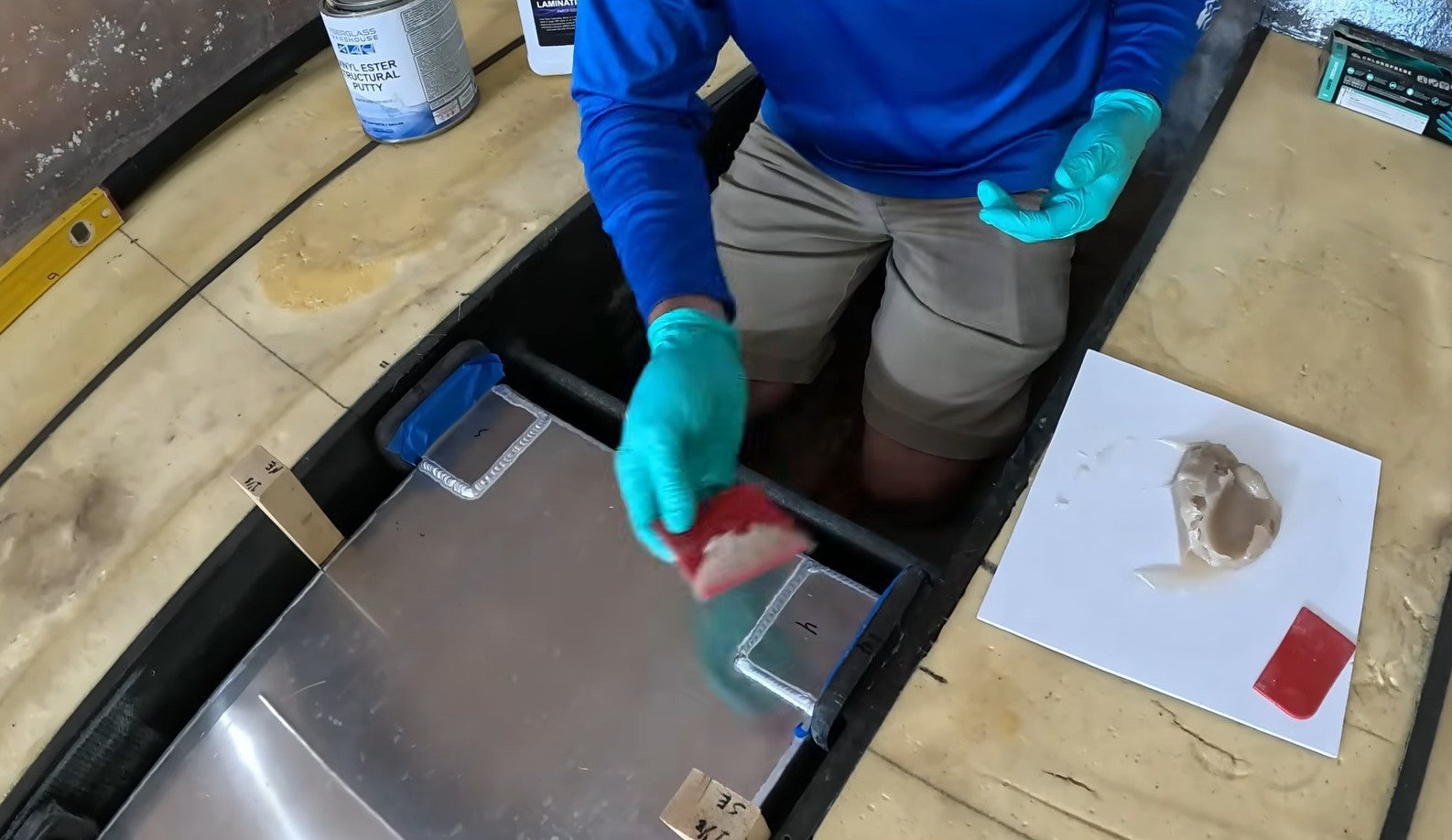

Once the fiberglass foundation is cured, place the fuel tank into the cavity to check the fit. Mark the exact locations for the mounting screws on the Coosa or plywood pads. Apply a small amount of putty into any remaining crannies around the padding, then remove the tank to finish the final cavity details.

While the tank is out of the boat, you must prepare its exterior surface. Raw aluminum tanks are highly susceptible to corrosion if exposed to trapped moisture.

Sanding and cleaning the aluminum tank

Start by first cleaning the tank and then methodically sanding it. The goal is to create a rough texture that allows the primer to adhere mechanically. Keep sanding the surface until water no longer beads on the metal. For the fittings and delicate areas, use abrasive stripping pads.

During this process, wear clean gloves. The natural oils from your bare hands will contaminate the aluminum and prevent the primer from sticking.

After sanding, clean the tank completely. Use compressed air, a blower, and clean dry rags to remove all water from the nooks and crannies. You can gently warm the surface with a heat gun to guarantee the metal is entirely bone-dry. Finally, wear proper personal protective equipment (PPE) and wipe the entire tank down with acetone.

Applying the protective epoxy primer

Before painting, tape off all nozzles and fittings. Leave the manufacturer's specification label on the tank, but mask it off so it remains legible. Importantly, you must leave a spot of bare metal exactly where the tank's grounding wire attaches.

Suspend the fuel tank in the air so you can access all sides simultaneously. Apply a high-quality epoxy primer coat over the entire sanded surface. Allow the epoxy primer to fully cure according to the manufacturer's instructions before finally inserting the fuel tank into the newly built fiberglass coffin.

Ensure a secure and long-lasting fuel tank installation

By taking the time to build a rot-resistant foundation, using high-strength vinyl ester resins, and meticulously priming the aluminum tank, you drastically increase the lifespan of your boat's fuel system. Proper preparation prevents the nightmare scenario of having to cut open the deck to replace a corroded tank just a few years down the road. Take the process step by step, respect the curing times, and enjoy the peace of mind that comes with a structurally sound vessel.

See Captain Joe with Fish Bump TV on YouTube ready the fuel tank foundation and the fuel tank itself!
